CONTRACT ELECTRONICS
MANUFACTURING
High Quality Bespoke CEM Services
Since 1983
WHO WE ARE
Experienced & Advanced Provider of High Quality CEM Products
ABI Electronics offers a complete range of services to cover all aspects of Electronic Manufacturing
At ABI, quality, flexibility and customer satisfaction are paramount. Backed by a global reputation of high quality, we are certified in accordance with ISO 9001:2015. Over the years, we have remained loyal to our core principle of designing and manufacturing in-house, in the UK. We aim to be not just another supplier, but a true partner, offering low-cost set ups and unrivalled fast turnarounds at an extremely competitive price.
We’ve been manufacturing electronics for over 40 years, pioneering the circuit board test and measurement industry with our cutting-edge products. Our expertise in electronics manufacturing and global exports is extensible and we aim to impart this knowledge to streamline your supply chain.
SERVICES
We Provide a Full Range of Modern Electronics Manufacturing Options

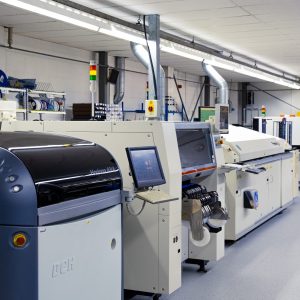

SMT Assembly
ABI Electronics are continually investing in the latest equipment and technologies to further enhance our capabilities and capacity, whilst striving to achieve quality excellence. With a full in-line SMT assembly production line, total flexibility with quick changeovers/set-ups can be achieved. Our SMT assembly line consists of:
- Dek Horizon 03iX Screen Printer – Precise, repeatable printing with Hawkeye verification

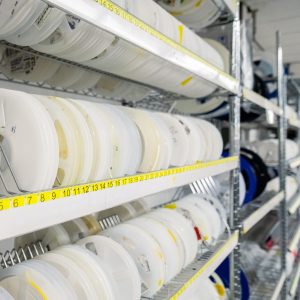

- Component Dry Storage – Closed loop humidity controlled drying & storage cabinet
- Samsung SM482
- Advanced Flexible Mounter – High speed pick & place machine
- Pyramax Reflow Oven
- Mirtec MV-6 OMNI – High-Speed/High-Performance 3D AOI Machine

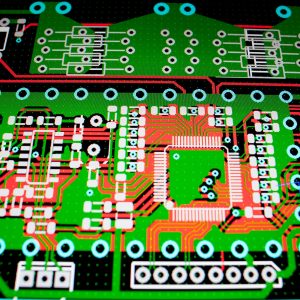

PCB Assembly

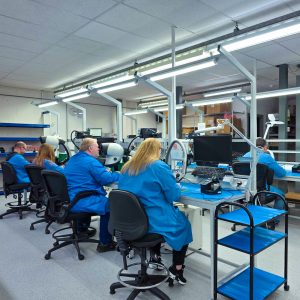

Hand & Unit Assembly
Hand soldering is available for specialized or custom-build PCB assemblies. All our operatives are trained to IPC standards to ensure that quality levels are met. We have facilities for prototyping to full batch cable assemblies. Our equipment consists of:
- JBC Soldering station
- Ersa IR 500A BGA Rework Station
- JBC Hot Air Station
- Mantis Elite/Elite-Cam HD Vision
- Carpenter-Compu-Strip 96
Hand & Wave Solder
The hand insertion and wave solder line is configured for optimum flexibility, allowing PCB assembly from 1-off quick turnaround prototype runs through low to medium volume production throughputs. Our line consists of:
- Automated Component Preparation
- Hand Assembly & Insertion Line
- Blundell CMS400-LF Wave-Solderer
- Post Wave Inspection Line
Prototyping
Utilising high speed, state of the art pick and place machinery we are able to setup and program small volume builds quickly enough to make machine build a competitive option. Our ability to offer a rapid prototyping service which we believe is second to none. Typical examples include Gerber to complete product, including PCB and parts procurement within 5 working days, or our 24-hour express build to free issue kit.
- New Product Introduction (NPI)
- Customer Product Introduction (CPI)
- Fast Turn Around PCB Prototyping
- Design for Manufacturing
- In-house Development Engineers
Quality Inspection
ABI has a culture of quality supported by ongoing operator training to IPC-A-610 workmanship standards. Accredited IPC trainers are on site to ensure every operator’s levels are maintained. A full data and trend analysis system is in place to monitor production performance at all stages of assembly and every product undergoes a thorough inspection protocol.

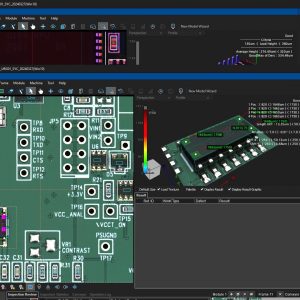

- Automated Optical Inspection
- BoardMaster Fault Diagnostics Solution Rework Station
- JTAGMaster Tester & Programmer
- LinearMaster & ChipMaster
- Custom Specification Test Rigs
- PremierLink & CompactLink
- PIC, Lattice, EPROM Programmers
- Digital/Analogue Oscilloscopes
- HP/Metrix Multimeters

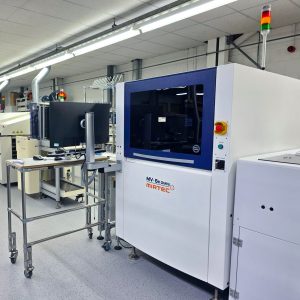

Optical Inspection
The Mirtec MV-6 OMNI features a 15 megapixel camera, an eight-phase colour lighting system, and 10-micron resolution, to automatically detect defects with unmatched accuracy. Its 18 megapixels side-view camera and advanced 3D technology enable superior lifted lead and co-planarity inspection. The system’s high-speed performance enhances testing productivity and quality control.

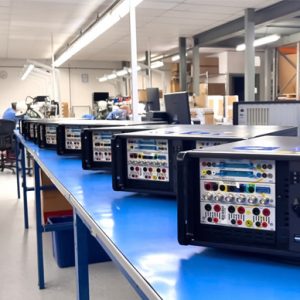

Box Builds
Our extensive facilities enable us to offer a complete service meaning our PCB assembly services do not just stop at quick turnaround PCB assembly for low and medium builds. We have over 40 years experience in full box build assembly, including materials management of all components, electromechanical parts, plastics, casings and print & packaging material. We can offer the option to conformally coat any PCB assemblies, from fully hand-built prototypes and small batches, to medium volumes. Units can be tested to customer specifications using either bespoke functional test equipment or utilising ABI’s own testing facilities.
PCBA Repairs & Rework
ABI have the facilities to do all aspects of PCB track & pad repair, & component rework, replacement and repair. We have a wide range of equipment to allow us to perform a high standard of rework, including automated optical inspection, to identify faulty soldering, wrong components or wrong orientation.
Third Party Logistics
At ABI, we are passionate about adding value to your organisation at every opportunity. Our range of services, from front end design through to back-end logistics, allows you to focus on your sales. With our experience of shipping our own products worldwide for over 40 years, we offer outsourced or ”3PL” “third party logistics” services to companies for part, or sometimes all of their supply chain management function. We specialise in integrated and despatch services that can be scaled and customised to customer needs based on the demands and delivery service requirements. Our offering includes:
- Full Materials Procurement
- Goods Packed to Specification
- In-house Shipping Documentation
- Knowledge of Import & Export Procedures
- Worldwide delivery
"We have been very pleased with the boards and had no issues with successfully bringing them up. May I also say it was a pleasure to work with the team, who were always very straightforward to deal with, very clear and delivered what was promised. Not something that is universal!
If we have a future need for a similar prototype PCBA then I will be singing their praises and recommending them."
David AbbottSenior Project Manager
HOW WE WORK
Working With Us Is Simple!
1.
2.
3.
4.
5.
6.
Shaun Hayes
Managing Director
“At ABI Electronics, we’re proud to be a trusted partner in contract electronics manufacturing, delivering high-quality, reliable solutions to our customers. Our focus is simple: precision, innovation, and exceptional service at every stage of production. With decades of experience in electronics and a passionate team behind us, we make our clients complex electronic products a reality, on time and to the highest standards.
Thank you for choosing ABI and we look forward to building success together.”
